Welcome to Ali Aluminium, your trusted partner in Safat, Kuwait, for superior aluminium solutions. We take pride in supplying high-quality Aluminium 5005 sheets and plates, backed by our commitment to excellence and customer satisfaction. Our materials are sourced to meet the rigorous demands of both local industries and major projects, ensuring you receive a product that combines reliability with outstanding performance. When you choose us, you’re not just getting a material; you’re gaining a dedicated ally for your construction and manufacturing needs.

The Aluminium 5005 alloy is known for its excellent balance of strength and workability. Primarily composed of magnesium, it offers good corrosion resistance, similar to that of the 3003 alloy, but with a higher strength. This non-heat-treatable alloy is highly malleable, making it easy to weld and form into various shapes without losing its integrity. Its smooth, matte finish is not only aesthetically pleasing but also provides a superb surface for further finishing processes like painting or anodizing.

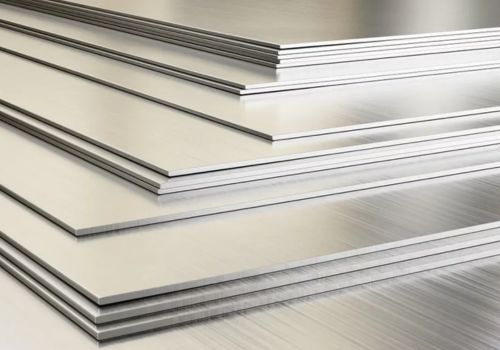

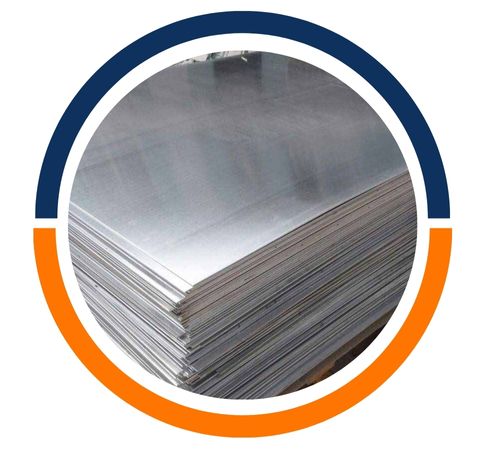

Aluminium 5005 Alloy Sheets

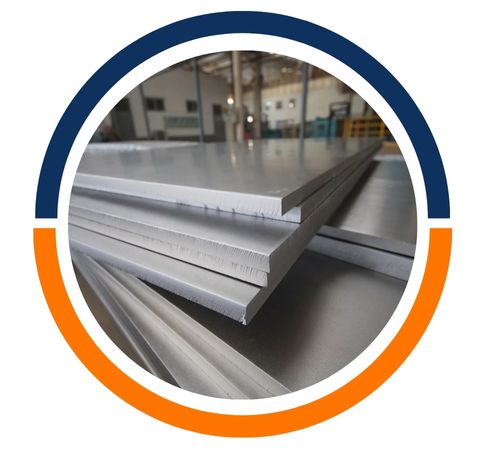

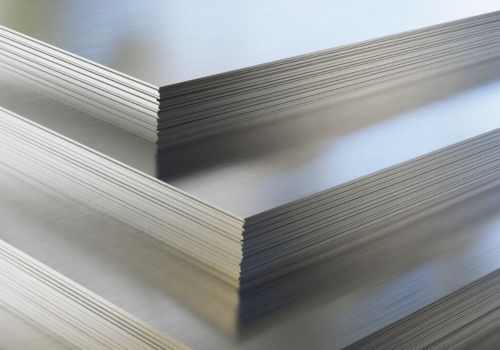

Aluminium 5005 Hot Rolled Sheets

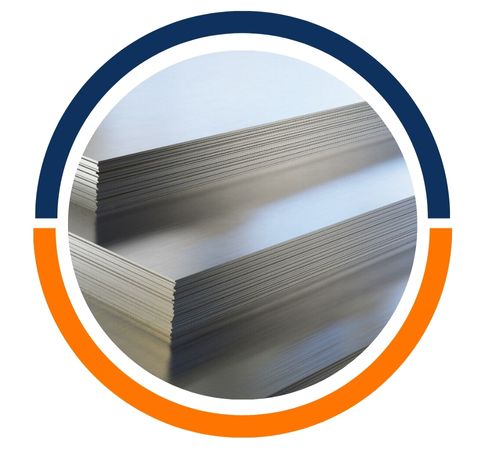

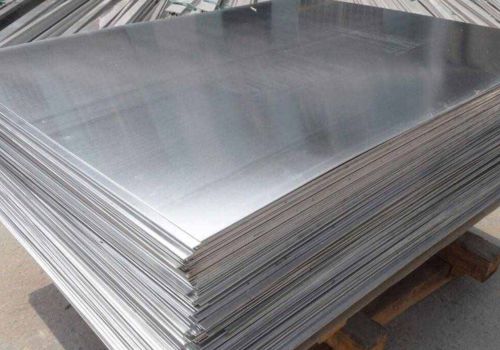

Aluminum 5005 Cold Rolled Sheets

Aluminium 5005 Clad Sheets Distributor in Kuwait, Al 5005 Perforated Plates Supplier in Safat, Aluminium Alloy 5005 Sheet Weight Chart, Al 5005 Plates Exporter in Jahra, Alumnium 5005 Polished Sheets Manufacturer in Hawalli, Aluminium 5005 Shim Sheet and Plate Price List in Kuwait, Aluminium 5005 Chequered Plates Sizes in mm, Alumnium Alloy 5005 Hot Rolled Plate Distributor in Al Ahmadi, Al 5005 Sheets and Plates Salmiya

Specifications of Aluminium 5005 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5005 Sheets and Plates

Element	%	Element	%
Aluminium	Balance	Manganese	0.20 max
Magnesium	0.50 – 1.10	Chromium	0.10 max
Silicon	0.30max	Zinc	0.25 max
Iron	0.07 max	Others, each	0.05 max
Copper	0.20 max	Others, total	0.15 max

Mechanical Properties of Aluminium 5005 Sheets and Plates

Temper	0.2% Proof Stress, MPa min†	Tensile Strength, MPa	Elongation % min‡
O (annealed)	35	105 – 145	12 – 22
H12	95	125 – 165	2 – 8
H14	115	145 – 185	1 – 6
H16	135	165 – 205	1 – 3
H18	–	> 185	1 – 3
H32	85	115 – 160	3 – 9
H34	105	135 – 180	2 – 7
H36	125	160 – 200	1 – 4
H38	–	> 180	1 – 4

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

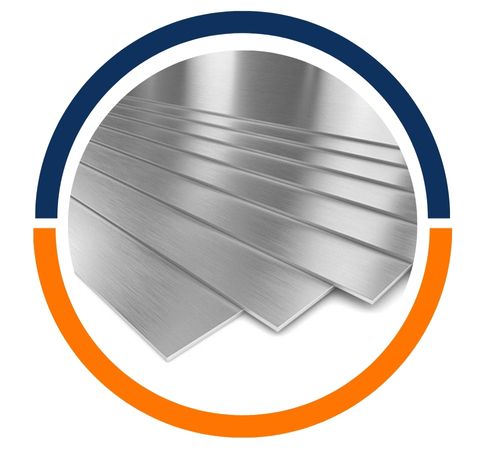

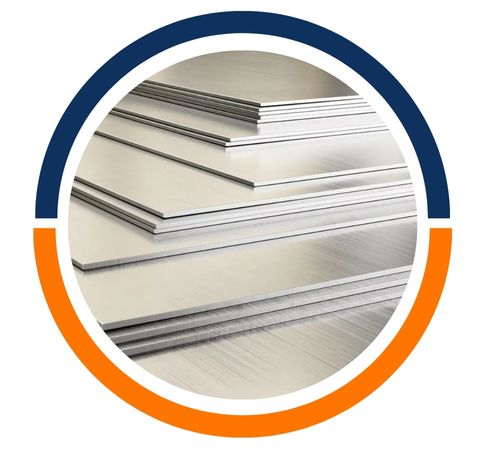

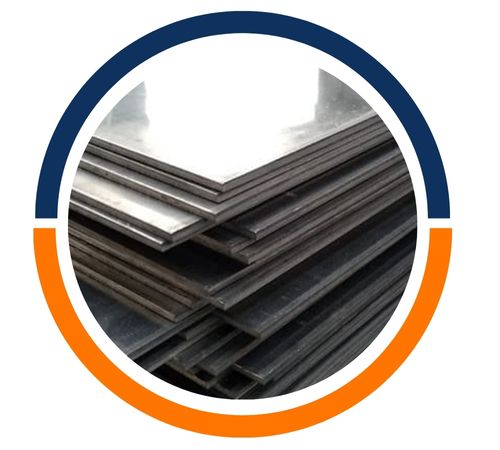

Types of Aluminium 5005 Sheets and Plates

Largest Aluminium 5005 Sheets and Plates Manufacturer and Exporter in Safat, Kuwait

Ali Aluminium based in Safat, Kuwait is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5005 Sheets and Plates

Standard	UNS	ISO	BS	DIN
5005	A95005	AlMg1	N41	3.3315

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5005 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5005 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5005 Sheets and Plates to meet specific project needs. Our team at Ali Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@alialuminium.com

Uses of Aluminium 5005 Sheets and Plates

From architectural marvels to everyday essentials, Aluminium 5005 sheets and plates are incredibly versatile. You will often find them used for building facades, roofing, and interior decorative panels, where their strength and finish are highly valued. They are also a preferred choice for manufacturing chemical equipment, shipping containers, and appliance parts due to their resilience. Even in your home, this alloy might be part of your refrigerator or air conditioning unit, quietly proving its durability and functionality in countless applications.
