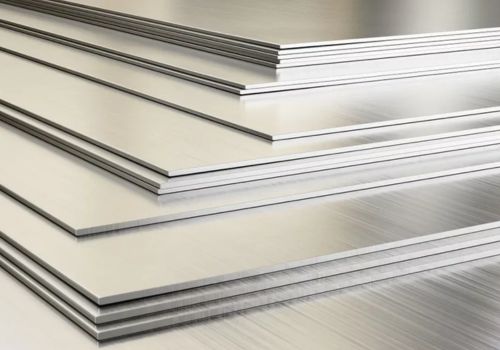

For businesses in Safat and across Kuwait seeking robust and reliable aluminum solutions, Ali Aluminium stands as your trusted local partner. We take pride in manufacturing and supplying high-grade Aluminium 2017 sheets and plates, engineered to meet the most demanding industrial challenges. Our commitment to quality ensures you receive materials that deliver exceptional strength and durability, backed by our expertise and dependable service right here in the heart of Kuwait’s industrial landscape.
Aluminium 2017 is primarily composed of copper, which gives it its notable strength. This composition results in a material that is mechanically strong and tough, though it is less resistant to corrosion than other aluminium alloys. It is known for its excellent machinability, allowing it to be shaped and worked with relative ease. However, this alloy is not typically weldable and achieves its best properties through a heat treatment process known as precipitation hardening.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
| Material | Condition | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | |||
| Al 2017 | 2017-T4 Bar | 55 | 379 | 32 | 221 | 12 |
Ali Aluminium based in Safat, Kuwait is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2017 Sheets and Plates to meet specific project needs. Our team at Ali Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@alialuminium.com
The impressive strength of Aluminium 2017 makes it a preferred choice for highly stressed structural applications. You will often find it used in the aerospace industry for aircraft components, as well as in the manufacturing of heavy-duty truck frames and other transportation parts. It is also ideal for machinery components like gears and shafts, and even for manufacturing high-strength bolts and rivets, wherever superior mechanical performance is a critical requirement for the project’s success.
