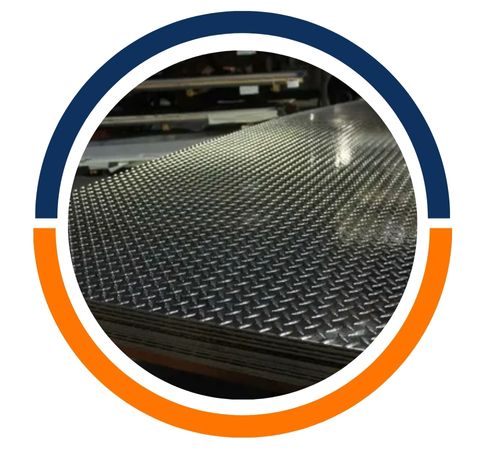

Welcome to Ali Aluminium, your trusted partner in Safat, Kuwait for premium aluminium solutions. We take pride in supplying high-quality Aluminium 5754 Chequered Plates, celebrated for their resilience and versatility. As a dedicated manufacturer and supplier, we ensure our products are engineered to withstand the demanding conditions of both industrial and marine environments, offering a reliable and durable option for a multitude of demanding projects right here in Kuwait and beyond.
The composition of Aluminium 5754 is centered around magnesium, giving these chequered plates their notable strength and excellent corrosion resistance, especially in marine settings. These plates are not just tough; they are also highly workable, allowing for easy welding and forming without losing their structural integrity. This combination of mechanical properties makes them a practical and long-lasting choice where both performance and durability are key considerations.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN | ISO | USA | WNR |
| A95754 | EN AW-5754 | AlMg3 | AlMg3 | AA5754 | 3.3535 |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
Ali Aluminium based in Safat, Kuwait is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5754 Chequered Plates to meet specific project needs. Our team at Ali Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@alialuminium.com
The uses for these sturdy plates are incredibly varied, making them a common sight in many industries. You’ll often find them as non-slip flooring in factories, on ship decks, and in the construction of sturdy truck bodies and trailers. Architects and builders also favor them for decorative cladding and walkways, where safety and a modern aesthetic are important. Essentially, wherever a combination of strength, safety, and resistance to the elements is required, Aluminium 5754 Chequered Plates deliver outstanding performance.
