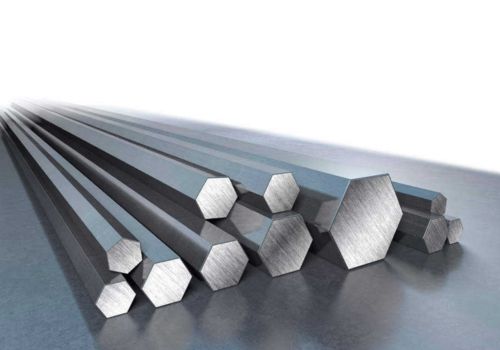

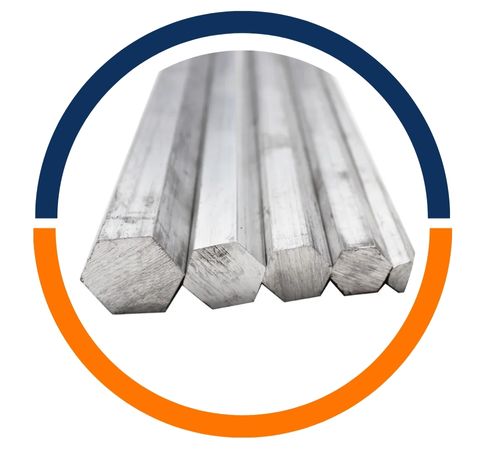

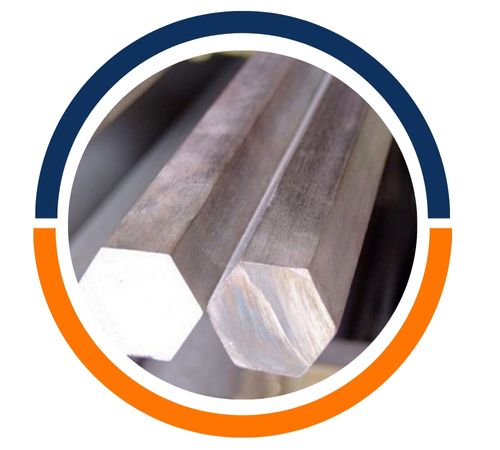

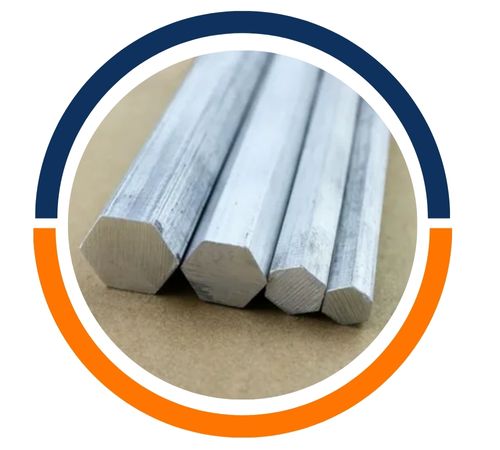

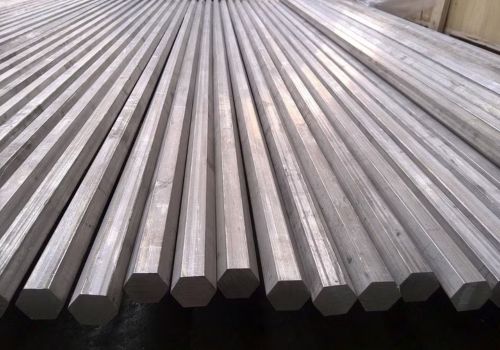

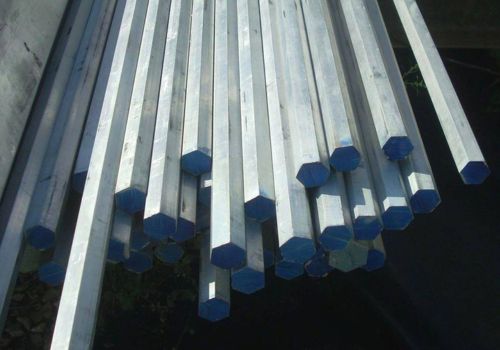

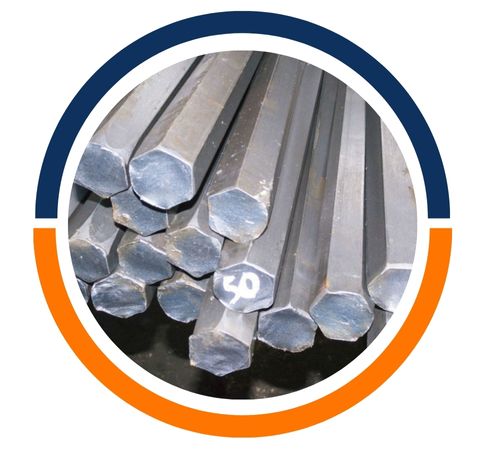

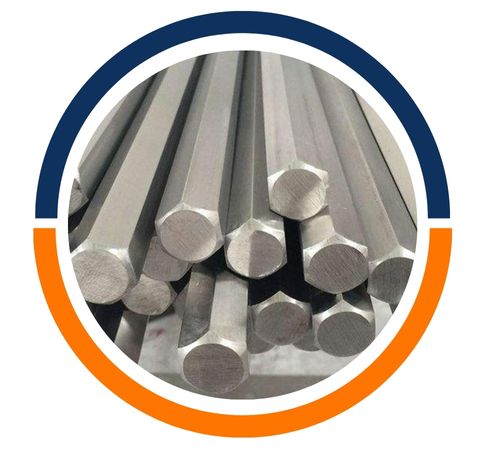

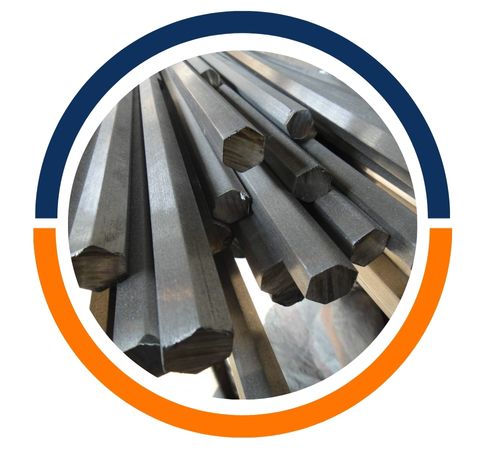

From Ali Aluminium in Safat, we offer high-grade Aluminium 1060 Hex Bars, known for their exceptional workability and value. Ideal for a wide range of fabrication needs, these bars are a cornerstone for projects requiring a lightweight yet reliable material sourced from a trusted Kuwaiti supplier. We take pride in providing a product that combines practical performance with the durability needed for both intricate designs and robust structures.
Our Aluminium 1060 Hex Bars are composed of a minimum of 99.6% aluminium, which gives them excellent corrosion resistance and a high degree of electrical conductivity. Mechanically, they offer a typical tensile strength ranging from 70 to 110 MPa and are very soft and malleable in the annealed condition. This combination makes them supremely easy to weld, machine, and form into complex shapes without compromising their integrity.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 1060 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.20 | 0.10 – 0.15 | 0.01 – 0.03 | 0.01 – 0.03 | 0.01 – 0.05 | 0.01 – 0.03 | 0.020 – 0.030 | 99.60 |
| Mechanical Properties – Al 1060 | ||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 1060 | O | 55 | 75 | 25 | 25 | 30 |
| H12 | 75 | 110 | 6 | 6 | 7 | |
| H14 | 90 | 120 | 5 | 5 | 6 | |
| H16 | 95 | 130 | 4 | 4 | 4 | |
| H18 | 130 | — | 3 | 3 | 3 | |
Density : 2.7 g/cm³
Melting point : 649°C (1200°F)
Elastic modulus : 70-80 GPa (10152-11603 ksi)
| STANDARD | UNS |
| Aluminium 1060 | A91060 |
Ali Aluminium based in Safat, Kuwait is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 1060 Hex Bars to meet specific project needs. Our team at Ali Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@alialuminium.com
The versatility of these hex bars is truly impressive. You’ll often find them in the fabrication of piping systems, chemical equipment, and electrical bus conductors where corrosion resistance is key. Their excellent workability makes them a favorite for custom machined parts, brackets, and a host of architectural and general engineering applications. Essentially, they are the perfect choice when you need a fundamentally reliable and easy-to-use aluminium for less demanding structural tasks.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
